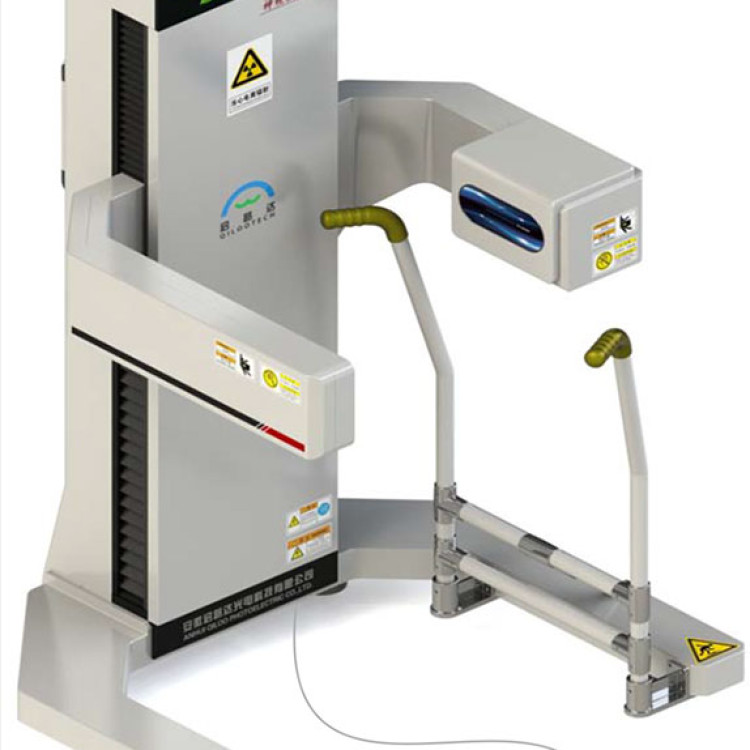

Portable torso screening system is a great breakthrough based on traditional fixed screening system. It is a new model which is featured by portable, handy and mobile design.
It is also the only micro-doze machine of this type available in the market. Small, mobile, high resolution, safe dosage, low radiation. It is free from installation/adjustment, only need to connect with power to work.

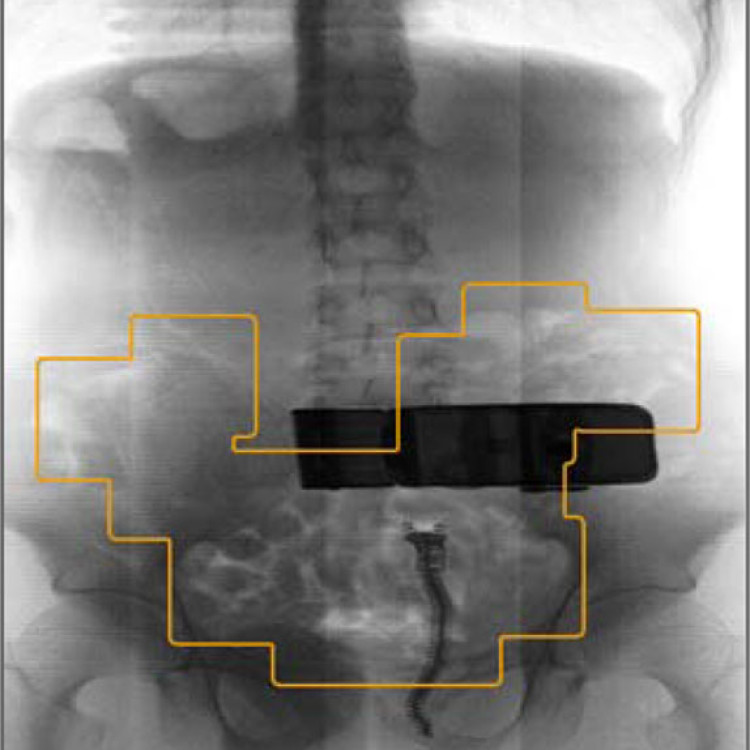

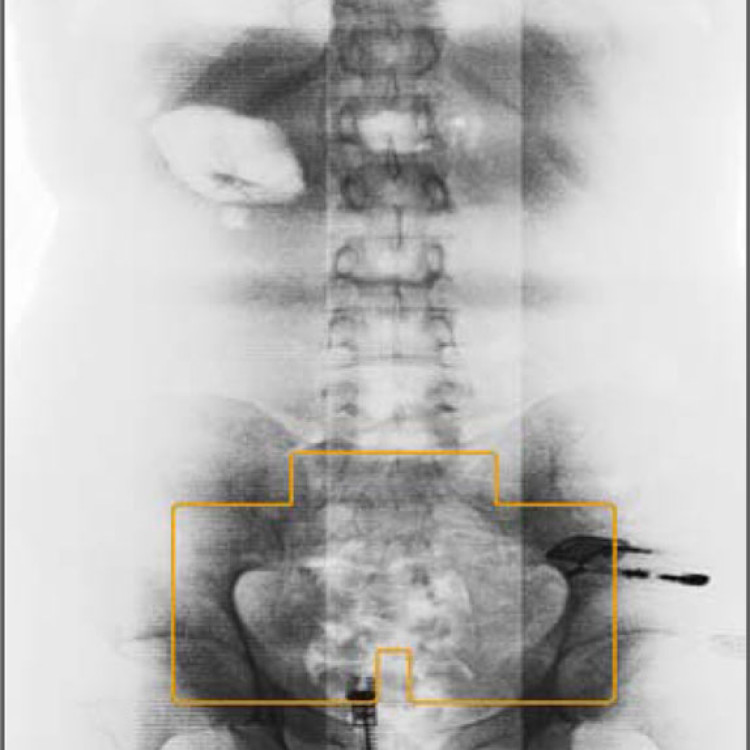

Its detection arms are able to move up and down in reciprocation. Its effective inspection range is focused on the torso part, which can effectively identify if drugs are concealed inside body or other contrabands are carried. This system is able to inspect in both up and down directions, which greatly improves inspection speed and efficiency. It is also featured by clear imaging, making analysis easier.
| SQ5010-AB Specifications | |
| Weight: | 200Kg |
| External Size(mm): | L1200×W1200×H1350 |
| Packing Size(mm): | L1400×W1400×H1500 |
| Working Temperature: | -5~40℃ |
| Humidity: | 10%~90% |
| Power: | 700W |
| Voltage/Frequency: | 220VAC,50±3Hz |
| Radiation Leakage at Protection Boundary: | 1μGy/h |
| Wire Resolution: | 40AWG |
| Spatial Resolution: | Able to distinguish 1mm wire pair |
| Detection Range: | Effective detection for 600mm |
| Time per Single Inspection: | 20s |
| Data Bit: | 16Byte |
| Communication Distance: | Standard 10 meters (Extendable to max 50meters) |
| Laptop: | Intel Core I7 Processor, 4GB Memory, 500GB Harddrive, 14”Display |
